Engineering Procurement Service Factory

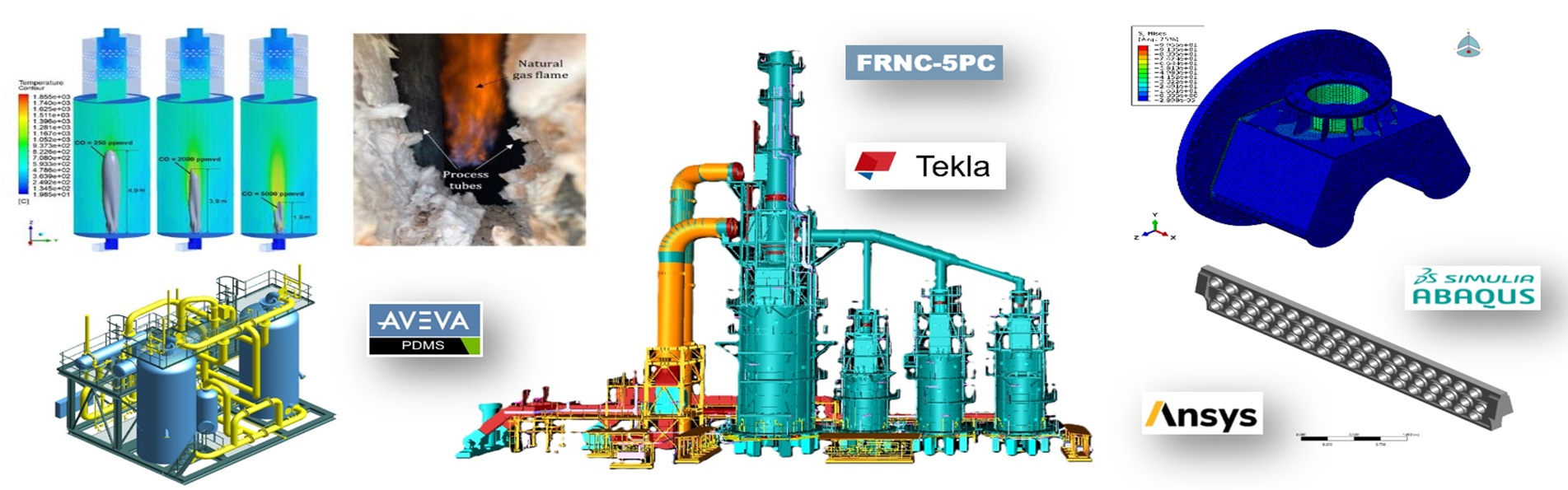

Process design

Simulation by ASPEN HYSYS, Flare Net. Process data calculation such as temperature, pressure, fluid flow rate and other process parameters

Tube-Hysys
  • Thermal Design
Thermal Calculation of Heater/ Furnace/ Heat Exchanger HTRI, ASPEN EDR, PPSD software and In-House Calculation Sheets
Termal
  • Mechanical Design
Modeling and Stress Analysis of the supports Final Element/ Hanger / Tube Sheet ANSYS, PV Elite, NozzlePRO, SolidWorks, Calculation Sheet
ANSYS
  • Stress Analysis in pipelines
Mechanical calculations and stress analysis in pipelines connected to Heaters CESAR II
Sapourt
Computational-fluid-dynamics-analysis

Computational Fluid Dynamics (CFD) Analysis to analyze and investigate fluid flow behavior

  • FLUENT
  • CFX
  • STAR CCM+
  • COMSOL Multiphysics
Structural design:
1 Step

Technical Design and 3D Modeling SAP, TEKLA

Structure-design
2 Step

3D Modeling of Pipes and Equipment PDMS (Plant Design Management System)

Detailed-design
3 Step

SIEMENS, HIMA, Conval GmbH

Detailed-design-of-precision-instruments
